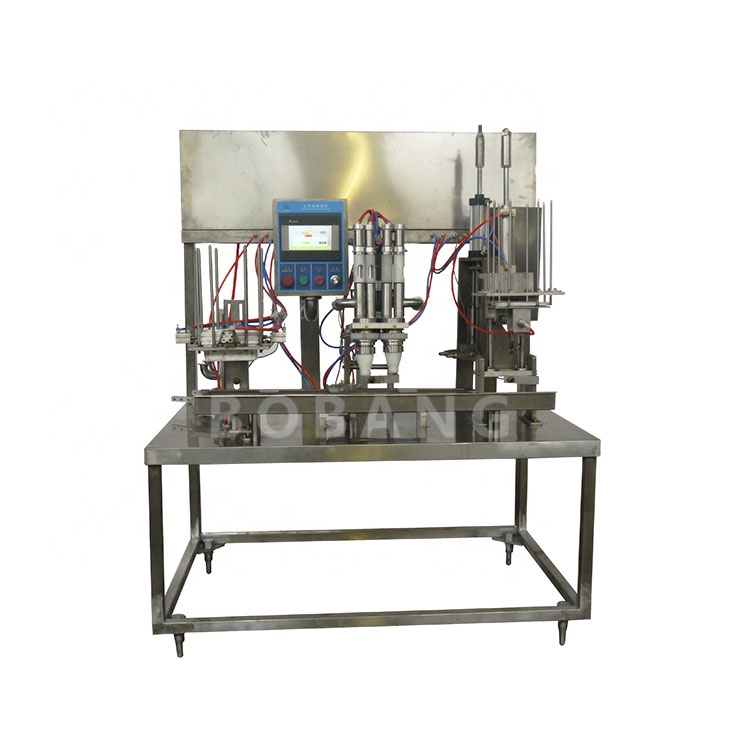

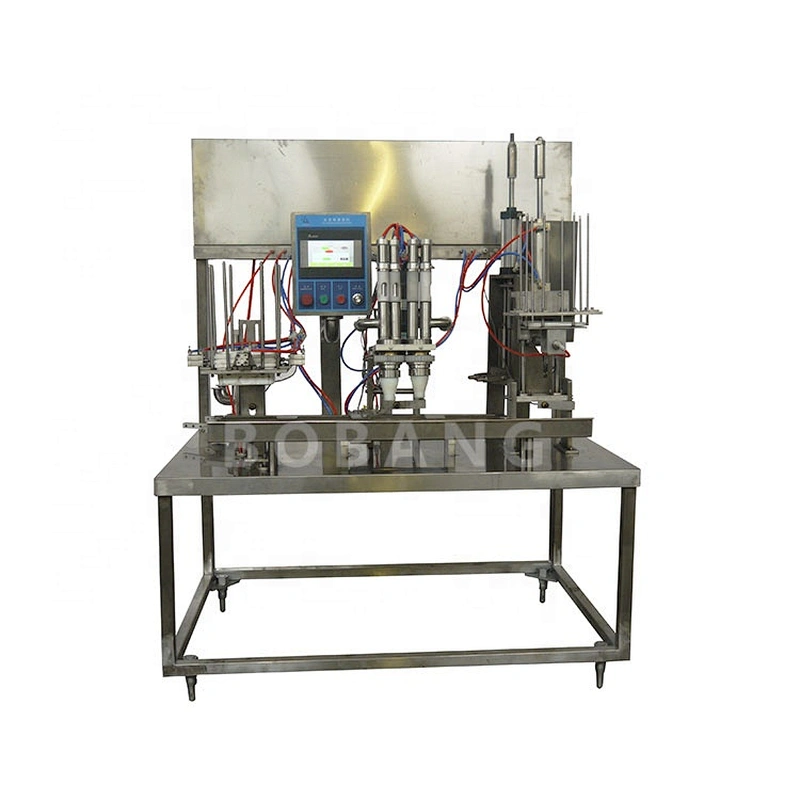

Automatic Family pack icecream machine is used for filling family bulk icecream in cup, such as 500ml,1L,1.5L,2Letc.
This machine can filling double color icecream with Jam or without Jam. The function of this machine is include Cupdispenser, Filling bulk icecream
in cup, Cover dropping and Transport out the cup. The filling head can be customized according to client's requirements and icecream style.
Our factory is established in 1984, As a famous China WY-JZ ICECREAM FILLING MACHINE Suppliers ice cream machines manufacturers, We are
specialised in design, manufacturing, sale and service of equipment and complete plants for the WY-JZ ICECREAM FILLING MACHINE.
Wamly welcome to our factory！
| PARAMETER | |
| Electric source | |
| Voltage input | 220V/1/50Hz |
| Power | 0.5Kw |
| Compressed air | |
| Working pressure | 0.5-0.6 MPa |
| Air consumption | 0.8m/min |
| Diameter of air pipe | 12mm |
| Product capacity | |
| Line for container | 1 line |
| Container Plate | Max 2pcs(standard) |
| Capacity | 1500L/H(max) |
| Size | |
| Overall size of machine | 3.65×1.2×2.4m |
| The width of ice cream container | 110-140mm |
| Center distance for plate | 245mm |
| Weight | |
| N.W | 250kg |
| G.W | 300kg |
Product functions:

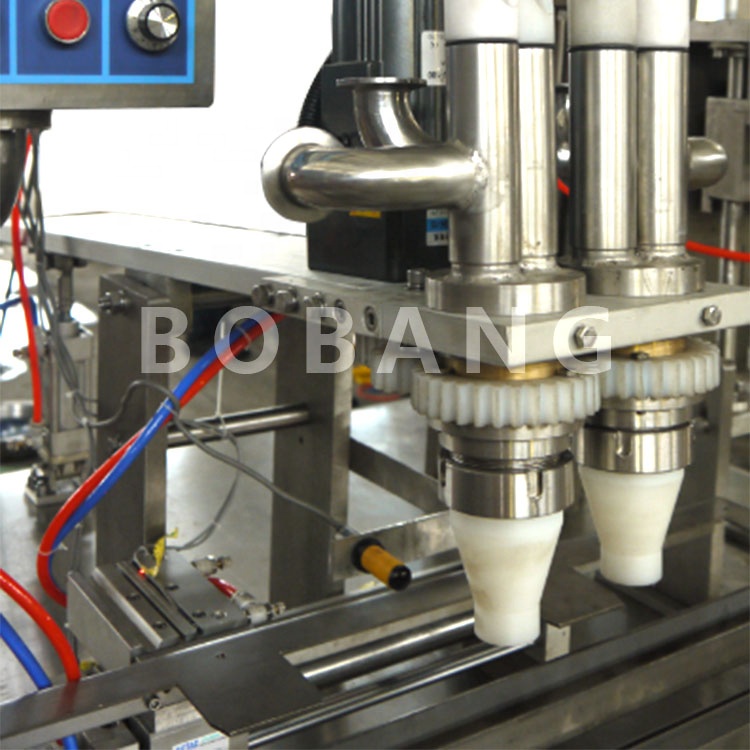

1 kinds shape of filling head for ice cream shape
(if need another shape, need change the filling head)
Filling ice cream with jam or without jam (for option)
Can filled by 1 or 2 filling heads according to container’ size.
PLC control.
(if need another shape, need change the filling head)
Filling ice cream with jam or without jam (for option)
Can filled by 1 or 2 filling heads according to container’ size.
PLC control.

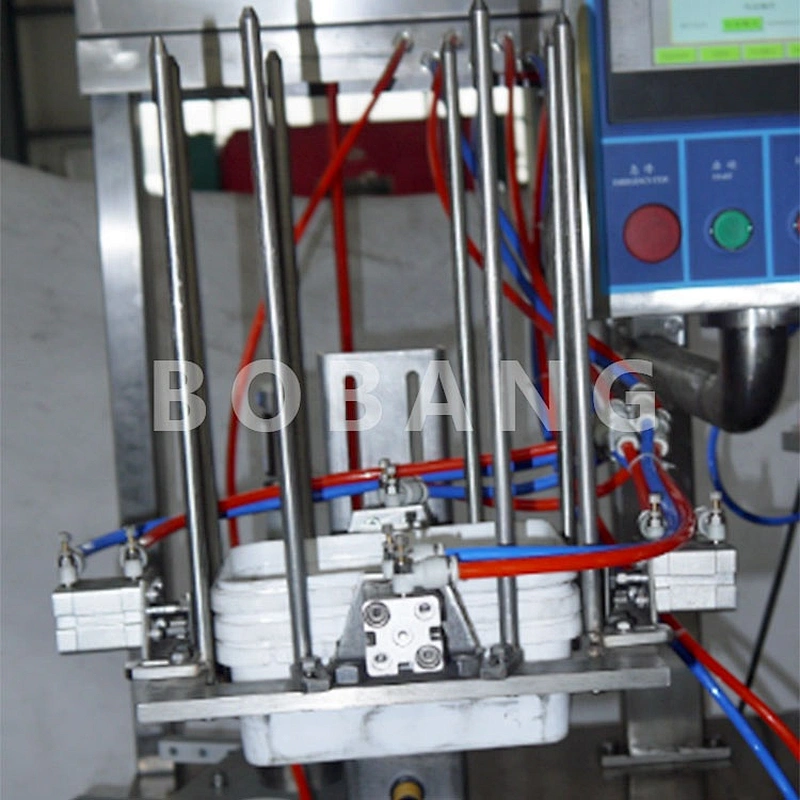

Container placing.
Ice cream filling.

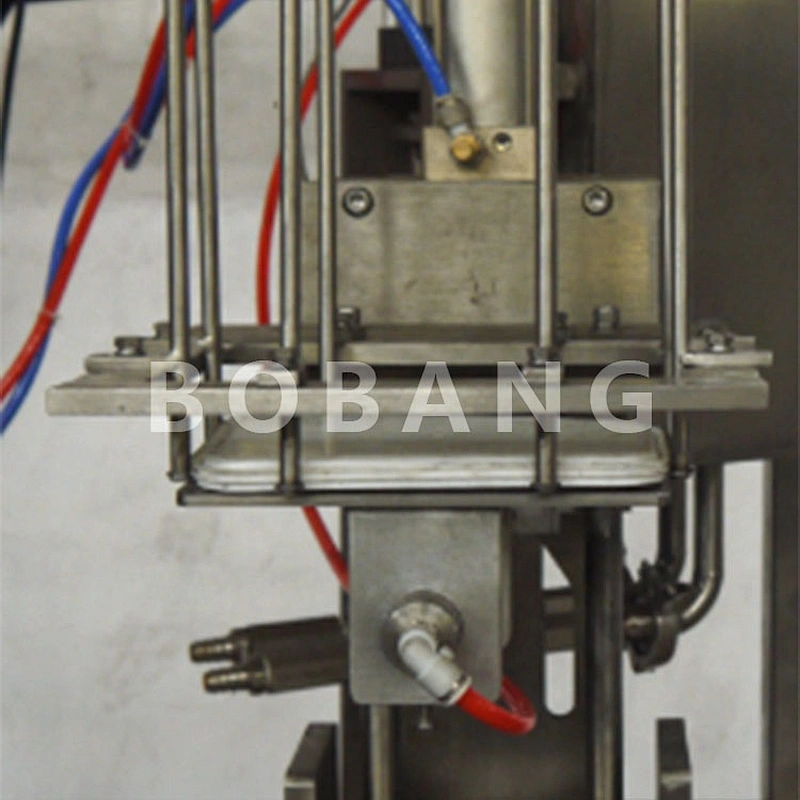

Cover placing and cover pressing.
Ice cream filling.
Cover placing and cover pressing.

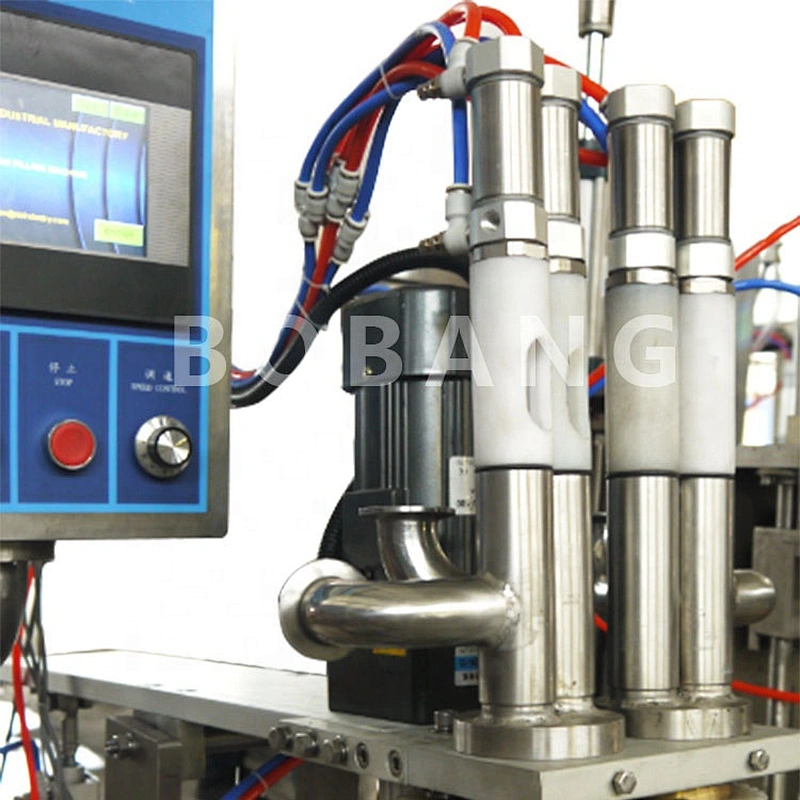

Detailed Images
