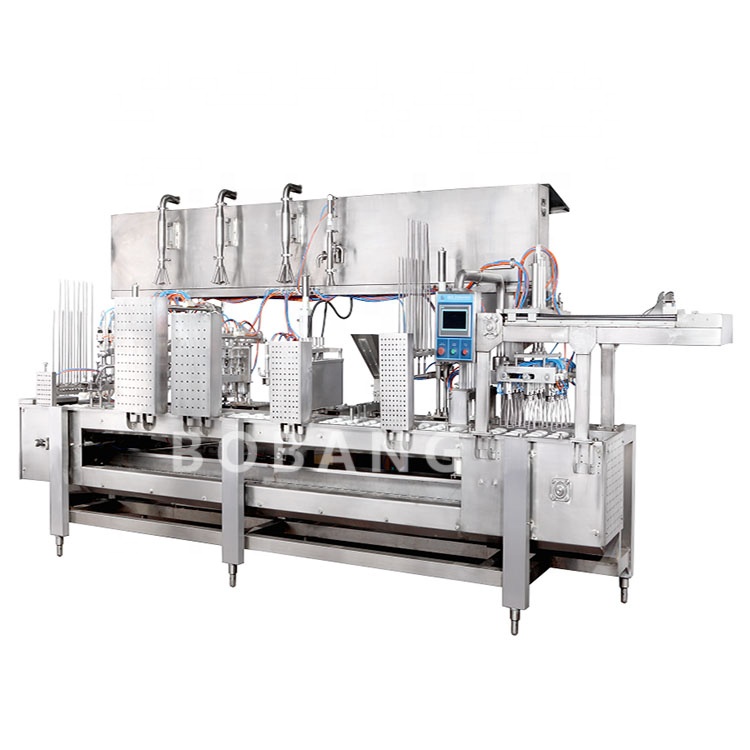

BG-4S6 Multi-functional icecream filling machine is designed for filling ice cream for varioustypes/sizes of egg-roll,plasic cup,jams,water ice,chocolate etc...It can use cutting function by customizing.
The frame of machine is consisted of stainless steel and the parts which contact to foods are made of stainless steel that is accordance to highest food hygiene.Machine is run the intermittent linear
The frame of machine is consisted of stainless steel and the parts which contact to foods are made of stainless steel that is accordance to highest food hygiene.Machine is run the intermittent linear
motion by an inverter motor driving the divider.The main cam control the drop cup and ejector cups.By the machnical pulling,the linear mould system and the major machanical parts of machince is
to keep a synchronous operation.The relevant sifnal will be sent to PLC by the scroll code device to control every function units of machine accuratelly and to be very stable.The machine is a type of
opening frame which is very convenient for water cleaning.This icecream machine also can be changed the mould distance to fit different sizes cups or container and no need to change the chain.
Our factory is established in 1984, As a famous China BG-4S6 ICECREAM FILLING MACHINE Suppliers ice cream machines manufacturers, We are specialised in design, manufacturing, sale and service
Our factory is established in 1984, As a famous China BG-4S6 ICECREAM FILLING MACHINE Suppliers ice cream machines manufacturers, We are specialised in design, manufacturing, sale and service
of equipment and complete plants for the BG-4S6 ICECREAM FILLING MACHINE.
Wamly welcome to our factory！
| Max production capacity | 9000 | PCS/H |
| Unit gramme | 50-500 | G |
| Electricity Power | 3/380/50 | PH/V/Hz |
| Total consumption Power | 6 | KW |
| Air pressure | 0.5-0.6 | MPa |
| Air eliminated | 3-4 | m³/MIN |
| Mould quantity | 72 | PCS |
| Distance of mould pore at center | 100 | MM |
| Weight | 2.5 | TONS |
| Dimension | 5(L)*1.2(W)*2.4(H) | M |
Product functions:
The machine can be chosen following units to meet customized functions:

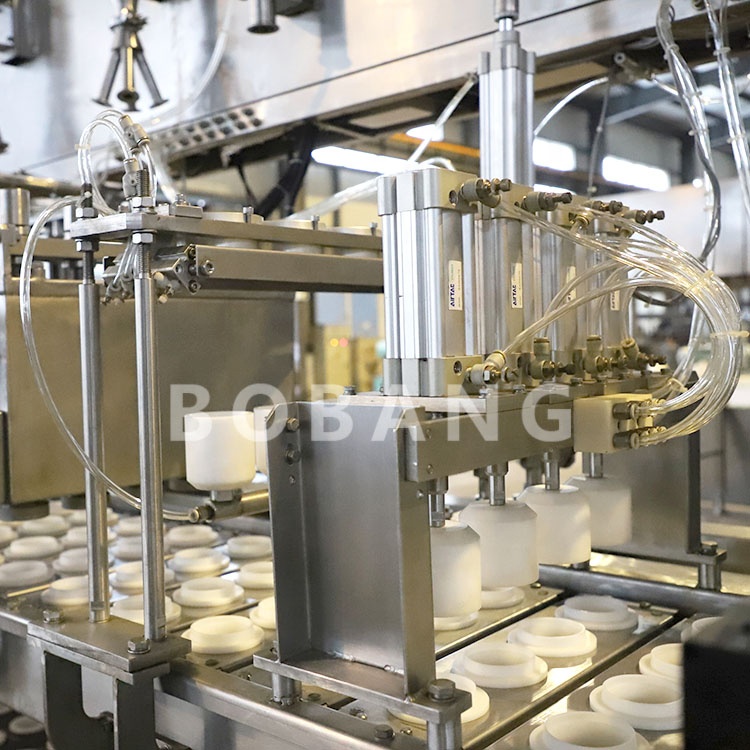

1、Cup dispenser
2、Setting cup
3、Spraying inside chocolate
4、Servo Filling ice cream
5 、Secondary filling ice cream
6、Pencil type filling
7、Adding fruit & nut
8、Dropping chocolate
9、Lids dispenser
10、 Settling lids
11 、Pressing lids (or sealing lids)
12 、output (or catching and lifting output)
2、Setting cup
3、Spraying inside chocolate
4、Servo Filling ice cream
5 、Secondary filling ice cream
6、Pencil type filling
7、Adding fruit & nut
8、Dropping chocolate
9、Lids dispenser
10、 Settling lids
11 、Pressing lids (or sealing lids)
12 、output (or catching and lifting output)

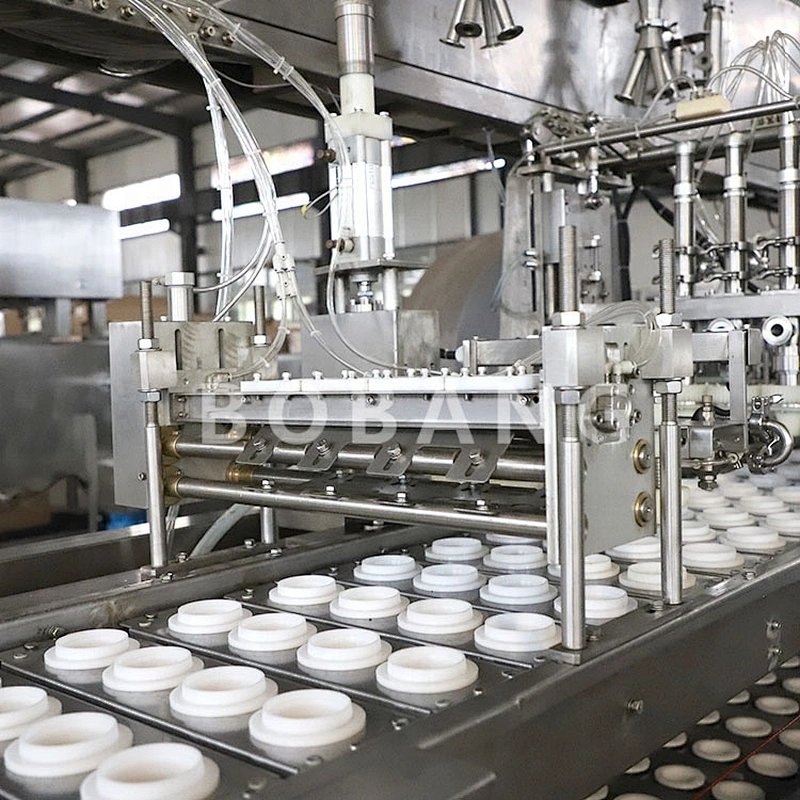

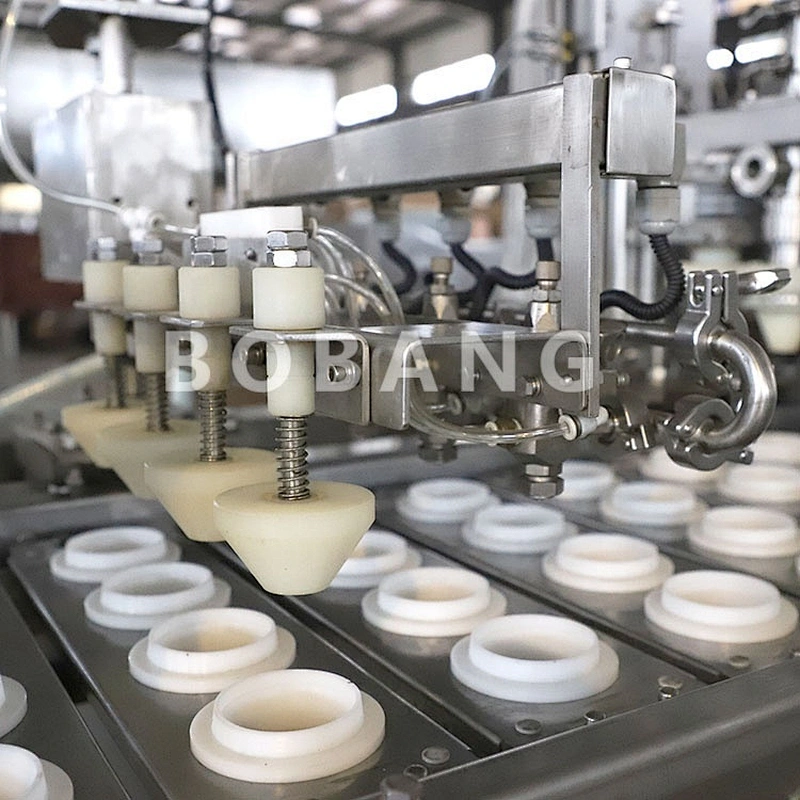

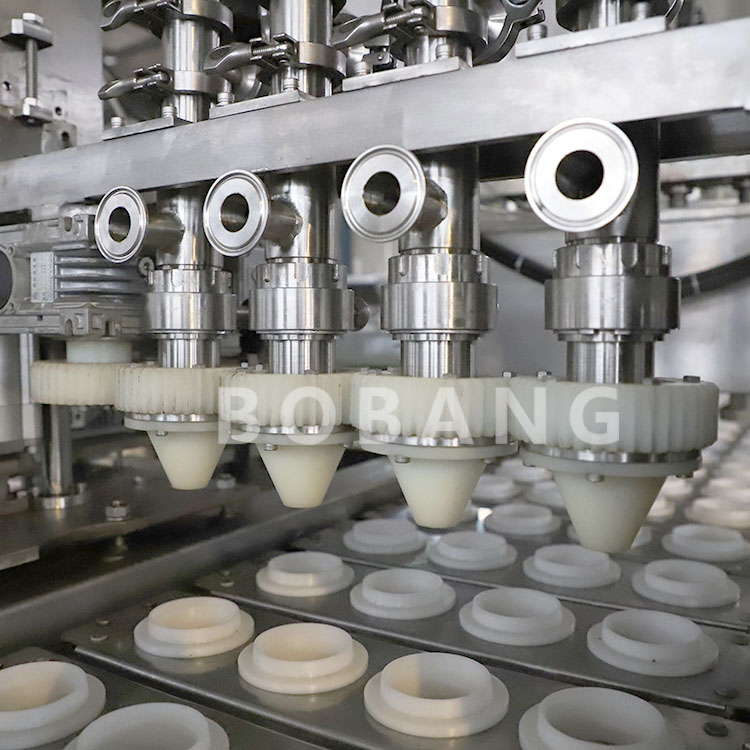

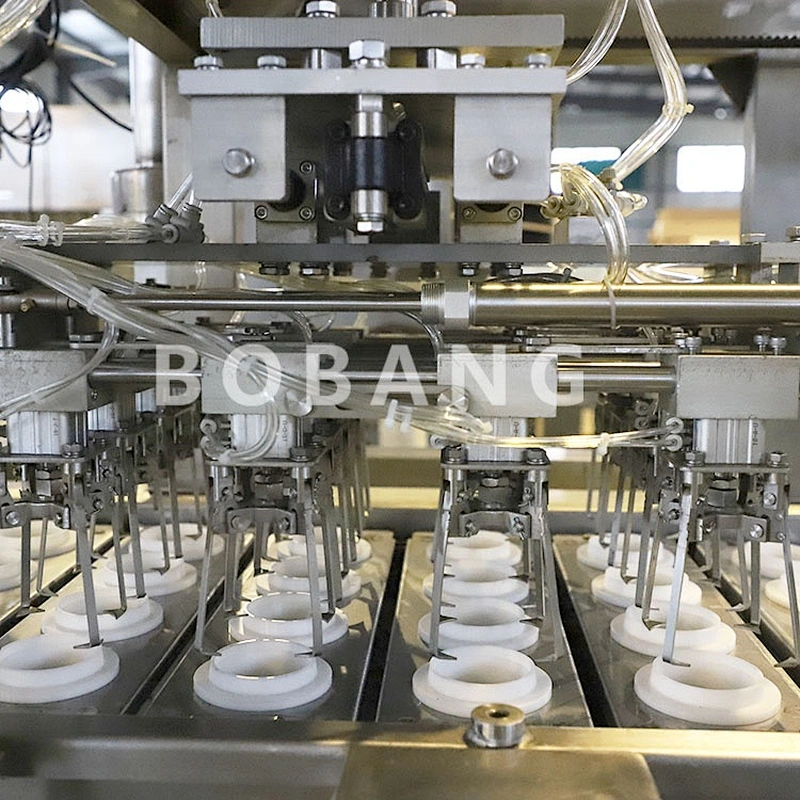

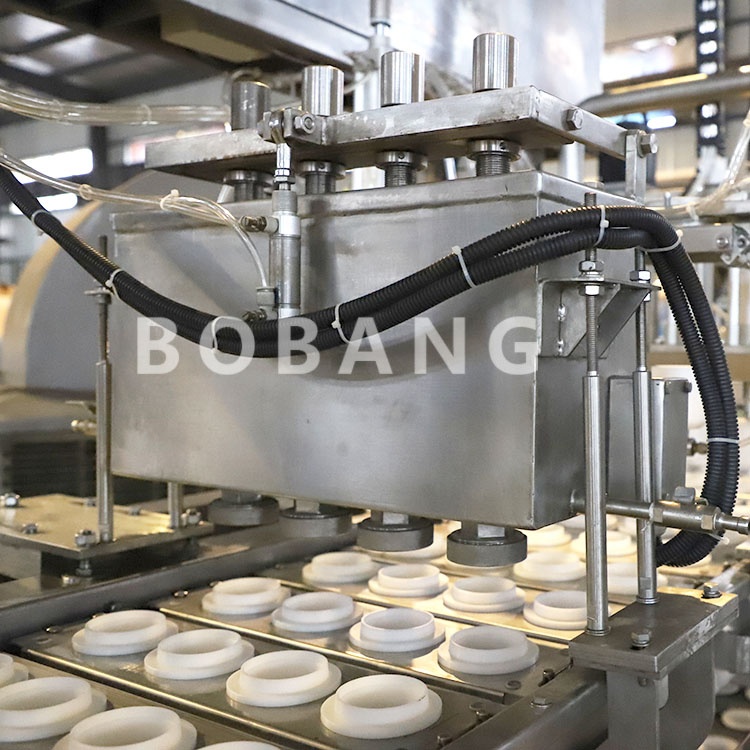

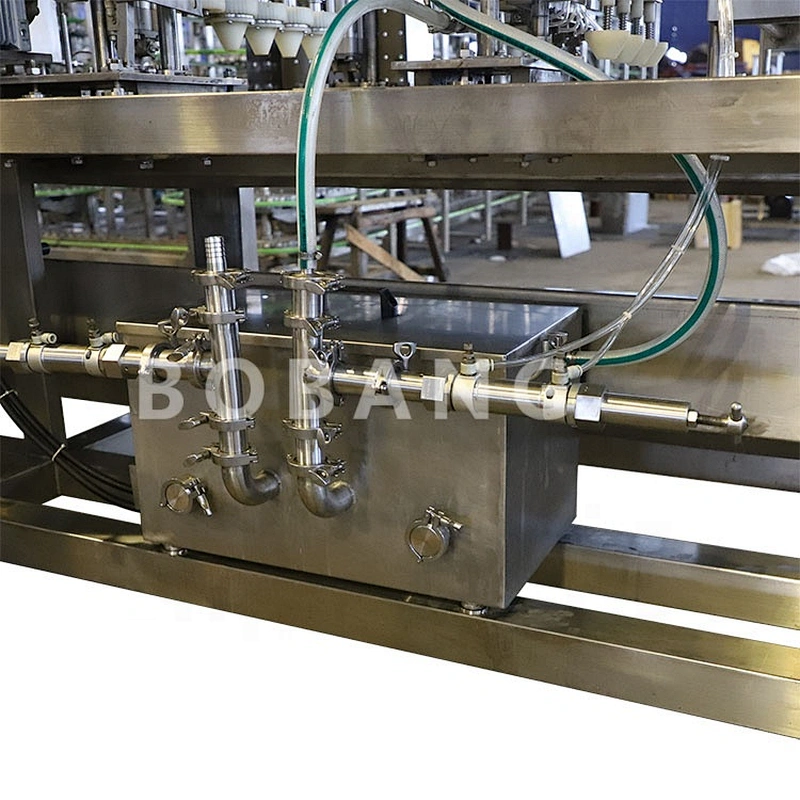

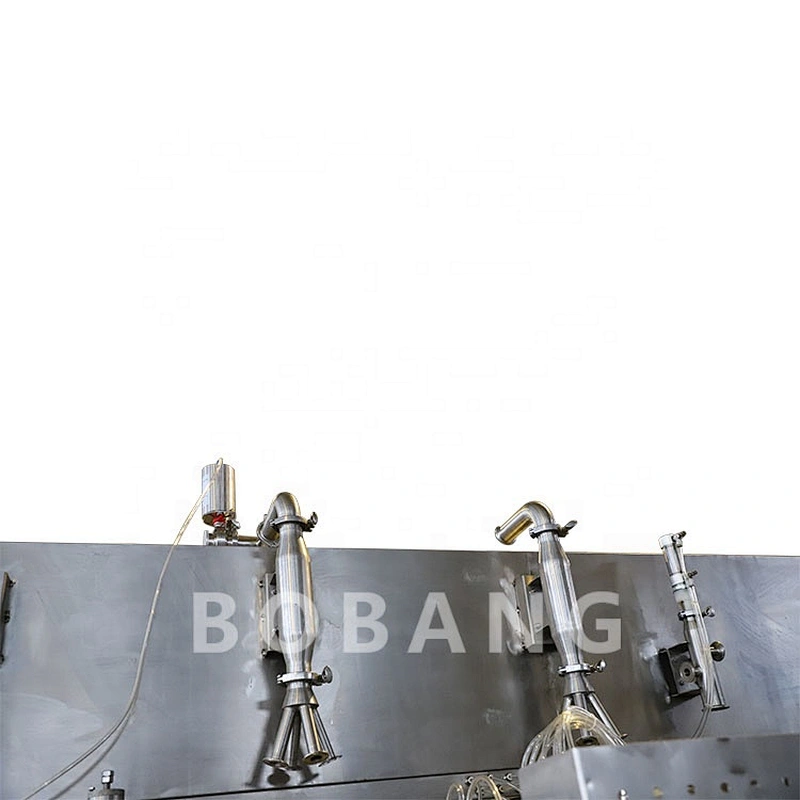

Detailed Images
