- Applicable Industries:Food & Beverage Factory, ice cream factory
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2022
- Warranty of core components:1 Year
- Core Components:PLC, Pump
- Condition:New, New
- Place of Origin:Zhejiang, China
- Brand Name:BOBANG
- Voltage:380V/3PH/50Hz or customized
- Power:32KW
- Dimension(L*W*H):1590x840x1820mm
- Weight:1150 KG
- Warranty:1 Year
- Cooling Capacity:6T/H
- Key Selling Points:Automatic
- After-sales Service Provided:Engineers available to service machinery overseas
- Function:Icecream
- Material:Stainless Steel 304
- Type:Fully Automatic
Product Description
No. | Parameter | Unit | Value |
1 | Model | ------ | BBL-1200 |
2 | Capacity | L/H | 1200 |
3 | Power Supply | ------ | 380V/3PH/50Hz or customized |
4 | Feron Compressor | ------ | COPELAND |
5 | Compressor Horse Power | Kw | 20 |
6 | Refrigerant | ------ | R404A |
7 | input temperature | ℃ | 2~4 |
8 | output temperature | ℃ | -4~ -5 |
9 | Condensation water | Ton/H | 6 (cooling tower water,+28℃) |
10 | Total power | Kw | 32 |
11 | Dimension (L*W*H) | mm | 1590x840x1820 |
12 | Gross Weight | Kg | ~1150 |

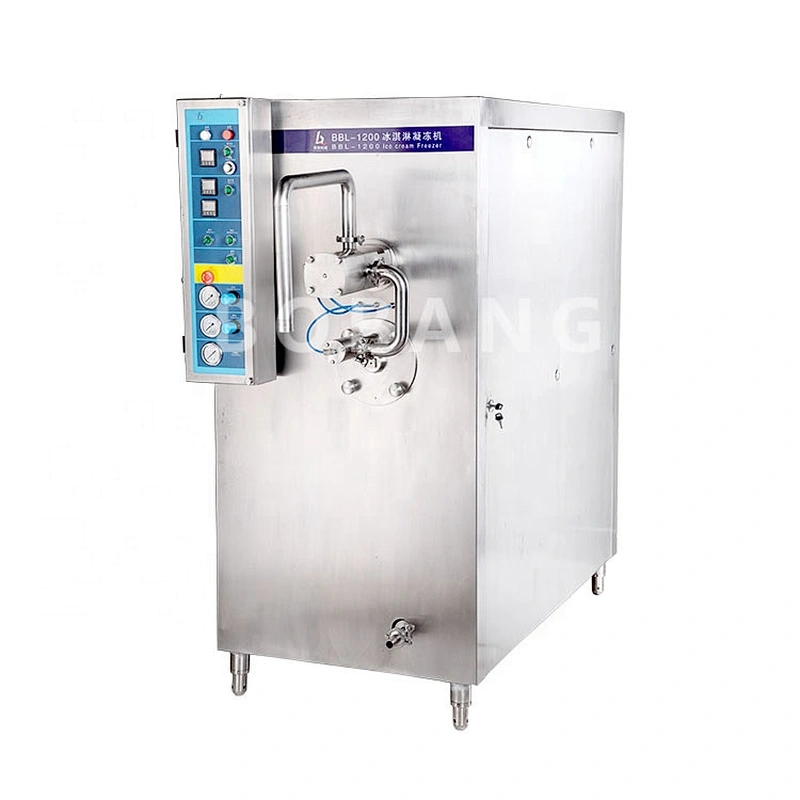

BBL-1200L/H Continuous Ice Cream Freezer is the best machine for large-scale cold food production. All accessaries/devices are fixed on a stableand integrated stainless steel frame. It is easy for operation, the cooling system is consistedof congealing cylinder, 2 scroll compressor, 2 high effective condensers, 1 economizer, 1 expansion valve and other kits. The machine use R404 refrigeration for running at a low temperature, this function is the same as using Bipolar compressor, but more stable. The machine mix the purified air with ice cream to get wanted expansion rate and cooling the both in the same time so that make out a ropy ice cream and offer enough pressure to push the ice cream through cylinder to exit.
Product functions:
filter system for purification of compressed air.
the pump suction for mixing up air with stuff before sending tocongealing tube.
air adjustment system to control air capacity.
congealing cylinder fixed with agitator and scratching knife to mixup air and stuff evenly and cooling down to be ropy shape.
cooling system contact to congealing cylinder to make it cooling down.
electric system to control all operations.
ice cream pump to give output and adjust the pressure of congealing cylinder.
automatically frost melting with CIP cleaning system, the icecream inlet by dual-piston pump and the icecream outlet by Star-moon pump constructure.
the pump suction for mixing up air with stuff before sending tocongealing tube.
air adjustment system to control air capacity.
congealing cylinder fixed with agitator and scratching knife to mixup air and stuff evenly and cooling down to be ropy shape.
cooling system contact to congealing cylinder to make it cooling down.
electric system to control all operations.
ice cream pump to give output and adjust the pressure of congealing cylinder.
automatically frost melting with CIP cleaning system, the icecream inlet by dual-piston pump and the icecream outlet by Star-moon pump constructure.
