- Applicable Industries:ice cream factory
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2022
- Warranty of core components:1 Year
- Core Components:PLC, electric machinery, touch screen
- Condition:New
- Place of Origin:Zhejiang, China
- Brand Name:BOBANG
- Voltage:380V/3PH/50Hz
- Power:22Kw
- Weight:10000 KG
- Dimension(L*W*H):9000*7500*3200mm
- Warranty:1 Year
- Key Selling Points:High Productivity
- After-sales Service Provided:Engineers available to service machinery overseas
- Function:Icecream
- Material:Stainless Steel 304
- Certification:CE Certificate

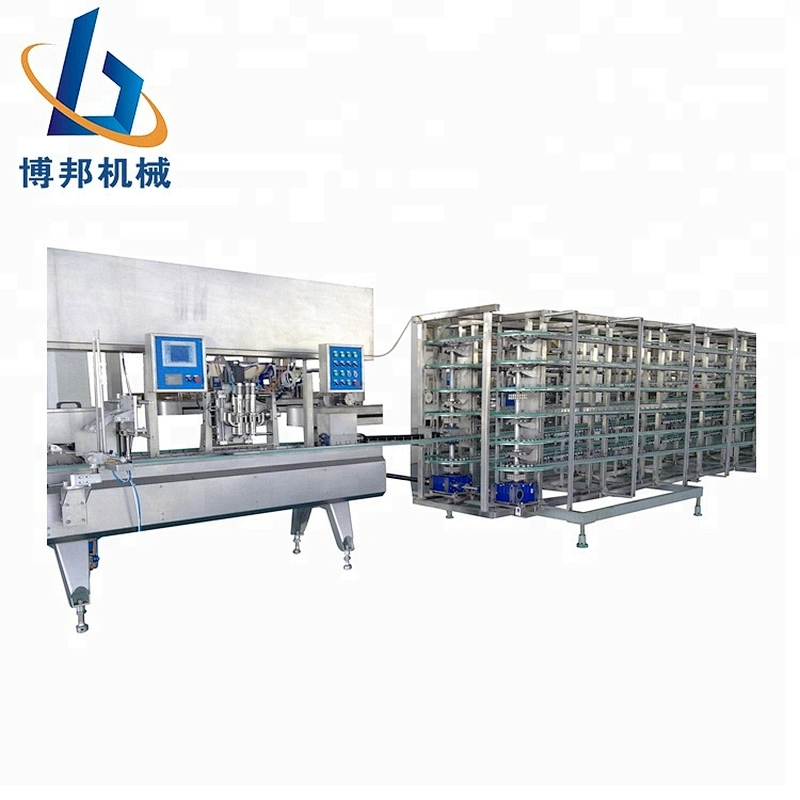

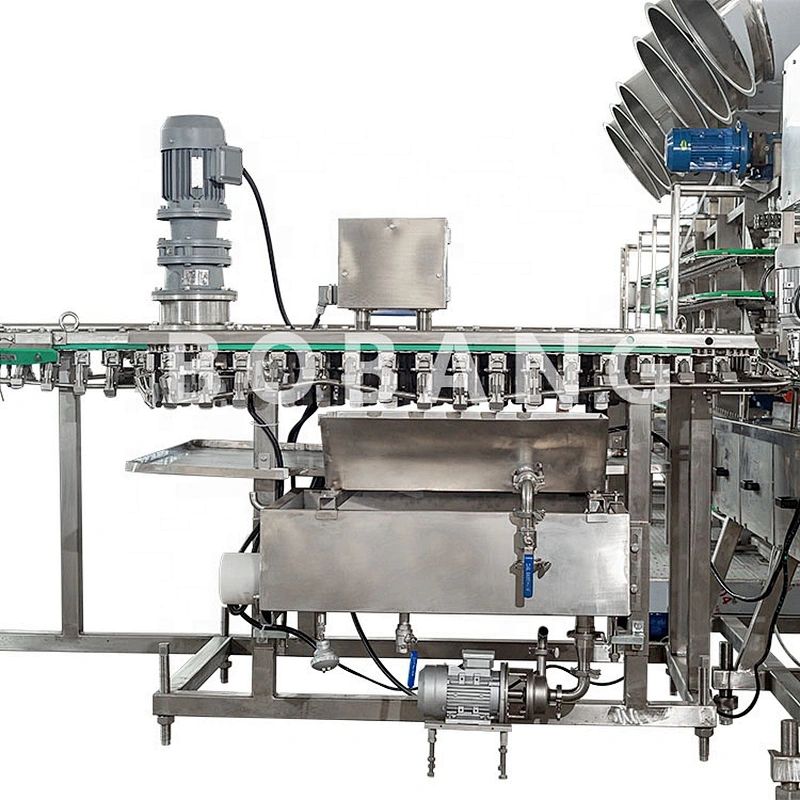

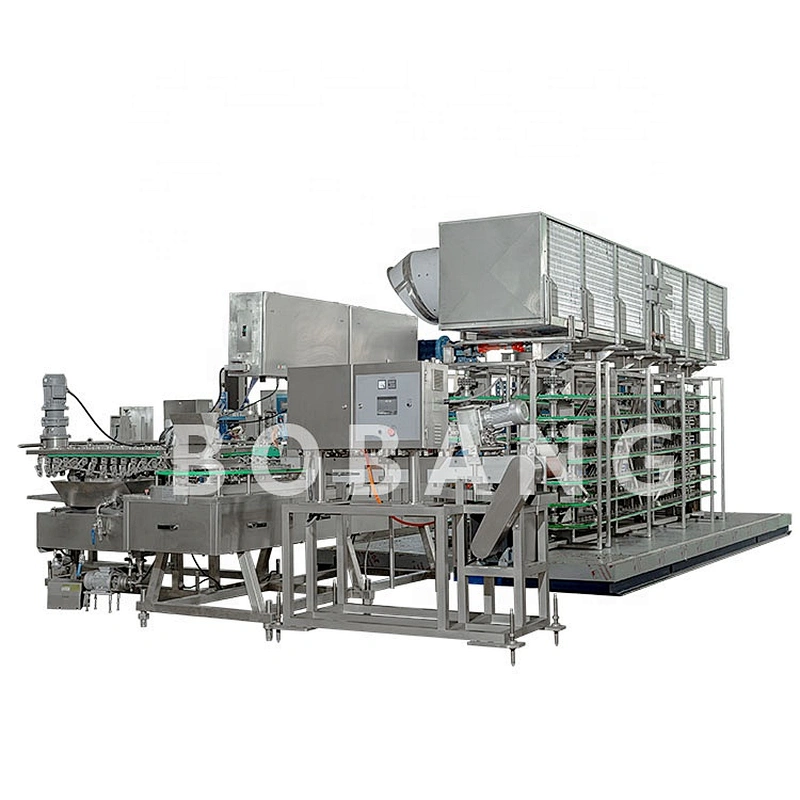

Extrusion tunnel machine:
| Specifications | 500 | 980 | 04 | 05 | |
| Tray Quantiy | piece | 520 | 990 | 680 | 700 |
| Maximum disk speed | piece/minute | 45 | 65 | 50 | 42 |
| Maximum output | piece/hour | 5100 | 7800 | 9000 | 15000 |
| Maximum cooling capacity | Kcal / hour | 50000 | 70000 | 110000 | 160000 |
| Air consumption | m³/minute | 0.5 | 0.5 | 1 | 1 |
| Evaporator surface heat transfer | Square meter | 680 | 360 | 800 | 1000 |
| Refrigerant refrigerant for evaporator | ammonia | R404 | |||
| Defrosting water | ton/hour | 8.8 | 16 | 24 | 32 |
| Defrosting water temperature | ℃ | ≤25 | |||
| Power | KW | 22 | 25 | 30 | 30 |
| Stick size | mm | 114*10*2 | 114*10*2 | 114*10*2 | 114*10*2 |
| Net Weight | ton | 10 | 12 | 14 | 16 |
| Size | (L*W*H)M | 9.0*7.5*3.2 | 11.0*7.5*3.2 | 15.0*8.5*2.5 | 16.0*8.5*3.7 |
